G mouse UG-3300P GPS Receiver
Features
- 16 channels to acquire and track satellites simultaneously
- PS2 cable Built-in patch antenna, 6 pins wafer connector RS232/TTL output
- Industry-leading TTFF speed
- -140dBm acquisition sensitivity
- -155dBm tracking sensitivity
- Selectable User Profiles with ability to change and save configuration to Flash
- SBAS (WAAS/EGNOS) capable
- Power Consumption <45mA
- Cold start < 60sec under open sky
- Hot start < 5sec under open sky
UG-3300P (PS2 cable)
- Ultra-high sensitivity 16 channels receiver
- The UG-3300P is a compact all-in-one GPS receiver that continuously tracks all satellites in view and provides accurate satellite positioning data.
- Incorporating the high GPS technology, UG-3300P with acquiring 16 channels ability improving cold-start fast positioning. It can track 16 channels down to 155 dBm and offers extremely accuracy even under attenuated situations such as high buildings in urban areas, dense foliage and even indoor. Satellite-based augmentation systems, such as WAAS and EGNOS, are supported to yield improved accuracy.
- The Ug-3300P is optimized for applications requiring high performance and low cost; it is suitable for a wide range of handhelds, asset tracking, Notebook, PDA-centric personal navigation system, and vehicle navigation products.
| Receiver Type | 16 parallel channels, C/A code(1.023 MHz chip rate) |
| Accuracy | Position 5m CEP Velocity 0.1m/sec Timing better than1 μs |
| Startup Time | < 5sec Hot Start < 10sec Warm Start < 60sec Cold Start |
| Signal Reacquisition | 1s |
| Sensitivity | -140dBm acquisition -155dBm tracking |
| Dynamics | 5G |
| Operational Limits | Altitude < 18,000m or Velocity 500m/sec (COCOM limit, either may be exceeded but not both) |
| Protocol | NMEA-0183, ver. 3.01 4800 baud, 8 N 1 (optional) |
| Datum | Default WGS-84 User definable |
| Serial Interface | LVTTL Level and RS-232 Level |
| RF Connector | N/A |
| Interface Connector | PS2 |
| Power Supply | 3.3V +/- 100mV or 3.8V ~ 8.0V (5V version) |
| Power Consumption | <45mA |
| Operating Temperature | -40oC ~ 85oC |
| Dimension | 50mmLx41mmWx17mmH |
| Weight | 20gmax |

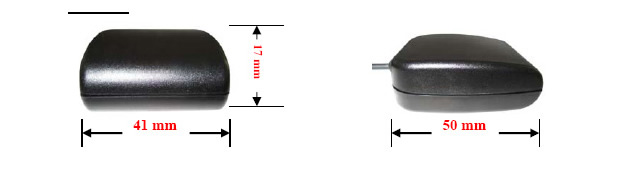

Mechanic Dimension
Housing
- Water Proof : IP65
Standard Package
- Ug-3300P Mini-DIN GPS Receiver
- Standard OEM Package
- MINI-DIN PIN ASSIGNMENT

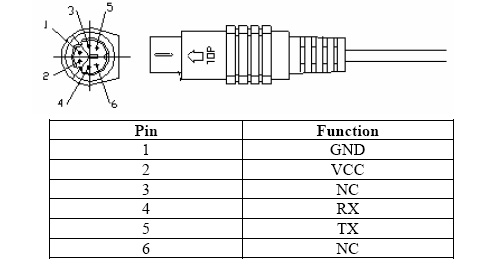

Mini-Din Pin Assignment
Customization Package
- Color Box
- User guide CD (including User Manuals; Driver for USB adaptor; GPS viewer testing program)
