Antenna Specifications For Approval

General Description

• Type No. : HYD-004 A
• Customer P/N :

Description & Application

• This antenna assembly is designed for use in portable.
• Communications equipment over a temperature range.
• Of -20℃ to +85℃ in an indoor / outdoor environment.

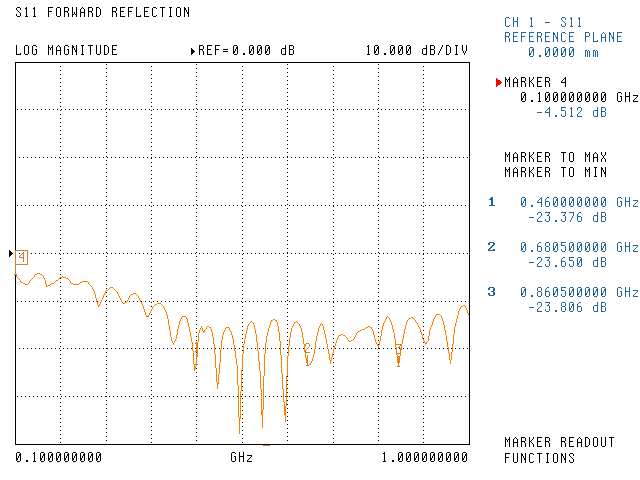

Electrical Characteristics

• Frequency Range: 470~860 MHz
• Connector: IEC Connector OR F connector
• Impedance: 75Ω

Environmental Characteristics

• Operating temperature range: -20℃ to +75℃
• Humidity range: 10 % RH to 80 % RH

Qualification Testing

• Qualification testing, all product shall be able to withstand the following testing.
• Physical dimensions identified within this specification.

Inspection Standard

• Dimension to use the special inspection level of S-4 , AQL 1.0 .
• Appearance to use MIL-STD-105DII AQL1.0 .
• Mechanical Capability : Per lot Sampling, n=5 , Ac 0 , Re 1 .
• Environmental test : Per lot Sampling, n=3 , Ac 0, Re 1 .

Packing Style

If customer has no specific request by the customer, all according to our standard Packing specification.

Others

Any changes in this specification should be agreed by both parties.

Antenna For 470~860 MHz

Type No : E-085-3

Electrical Specification

• Frequency range :470~860MHz
• Connector :IEC Connector/F connector
• Impedance :75Ω

Environmental & Mechanical Characters

• Temperature :-20℃ to +75℃
• Weight : 33.0 g
• Dimensions :28.5 x 136.5 mm
