UG-R46-1 GPS Signal Radiator
UG-R46-1 is built for the purpose to transmit the GPS satellite signal from outdoor to indoor, and re-radiating the receptions for multi-users to operate GPS Receivers inside buildings or vehicles.
For L1 band GPS signal, meets most of the GPS Receivers on the Market.
Features
- Plug-N-Play,easy to use
- Wide range of Power Input, compatible with any size of vehicle almost
- The radiation range could reach one meter around
- The simple of structure make as easy installation
- For L1 band GPS signal, meets most of the GPS Receivers on the Market
Introduction
-
UG-R46-1 is a re-radiating equipment. It can receive the outdoor GPS satellite signal and conduct to indoor place for radiating again. When a GPS Satellite is revolving around the earth it will transmit continuously satellite signal to the earth, but the strength of satellite signal will weaken to only around -125dBm when it arrived to the earth ground. Such weak signal can't penetrate into buildings or vehicles; besides, its reflection or scattering signal can be detected only in around windows area.
-
UG-R46-1 is built for the purpose to transmit the GPS satellite signal from outdoor to indoor, and re-radiating the receptions for multi-users to operate GPS Receivers inside buildings or vehicles. Therefore, users can work the GPSequipments indoor same as using it outdoor.
- UG-R46-1 contents a power regulation circuit, a high frequency low noise amplifier, a signal radiation set, and an active outdoor antenna to receive the GPS satellite signal.

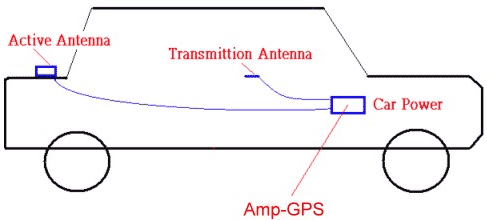

Installation
Note : To prevent oscillation, external antenna must not near by the transmittion antenna .
Application Notes
- Suggestion-- put the external Active antenna outdoors, better with no blocking.
- To make the distance for external active antenna and radar antenna as far as possible, too close will cause oscillation.
- The longer active antenna cable be used, the higher gain it need.
| Specification | |
|---|---|
| Power Required: | 10~26VDC, Less than 25mA, @12VDC input (Active Antenna not included) |
| Gain: | ~24dB |
| Frequency: | L1 Band, 1575.42 +/- 10MHz |
| LED Indication: | Red (For Power Input). |
| Operation Temperature: | -40℃ ~ +80℃ |
| Operation Humidity: | 5% ~ 95% |
| Dimension: | 107 x 67 x 20 mm (Main Body) |
| Weight: | 110 g |
| Radiation Antenna: | the length of Dipole are 6 cm |
| Radiation Antenna: | the length of RG-174U Cable are 200 cm |
| Radiation Antenna Range: | one meter around |
| MCX connector: | providing 5V, 25mA power for the External Active Antenna |
| External Active Antenna Impedance: | 50 ohm |
| External Antenna Gain: | average 26dB need, for 2-5 meter cable, but it may depends on the length of cable |
| Accessories | |
| Active Antenna (UG-003) | 5 meters cable (Standard) >5 meters cable (Optional) |
| Power Supply For Indoors (UG-R46-1)(Optional) | |
